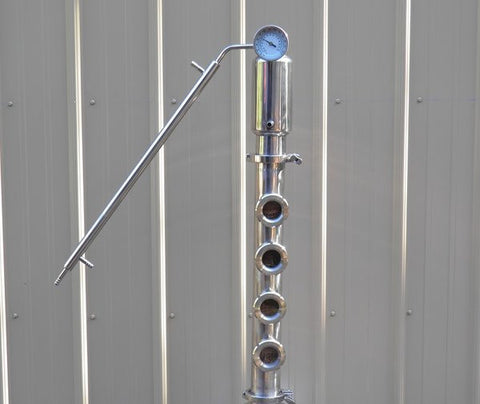

3" Stainless Steel Moonshine Still Reflux Column, 4-Sight Glasses
This item is the column only. The still boiler is not included. This 3" Stainless Reflux Column was built from 304 Food Grade Stainless Steel. Solid Sanitary Tig welded construction, which is much stronger than soldering or brazing. Includes structured copper packing for the column. This column gives you the best of both worlds. You get the strength and durability of stainless and the flavor improving qualities of copper.
Comes with:
- 3" Tri clamp and gasket for connecting the column to a still.
- Commercial grade 3" face thermometer.
- 3" Tri clamp Dephlegmator connection with 3" tri clamp and gasket.
- Built in Liebeg condenser.
- 1/2" Hose barb connections on the condenser and Dephlegmator (pre-condenser) for cooling water.
- Enough structured copper packing to fill the column.
- Dephlegmator (pre-condenser) for increasing and controlling proof.
- Four 2" diameter sight glasses so that you can watch the action inside the column.
- The column measures 35.5" tall.
This item comes with a 1 year warranty which covers manufacturing defects and leaks.
DETERMINING TRI CLAMP SIZE
Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.
If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .
|
|
Pipe Outer Diameter |
Flange Outer Diameter |
Pipe Inner Diameter |
|
|
1" |
1.98" |
.87" |
|
1.5" |
1.98" |
1.37" |
|
|
2" |
2.52" |
1.87" |
|
|
2.5" |
3.05" |
2.37" |
|
|
3" |
3.58" |
2.87" |
|
|
4" |
4.68" |
3.83" |
|
|
6" |
6.57" |
5.78" |
|
|
8" |
8.57" |
7.78" |
|
|
10" |
10.57" |
9.69" |
|
|
12" |
12.57" |
11.81" |
Disclaimer:
These products may not be legal to operate in some areas. Affordable Distillery Equipment, LLC strongly discourages any unlawful use of these products and is not responsible for any damage or injury caused by the misuse or unlawful use of these products. Any person or entity that uses information or equipment provided by Affordable Distillery Equipment, LLC does so entirely at their own risk and accepts al liability concerning the use of the aforementioned equipment and information. At this time, Affordable Distillery Equipment, LLC is not required to report any customer information to any federal or state agency.
