600 Gallon Jacketed, Steam Heated, Pro Series Pot Still

$ 47,602.88

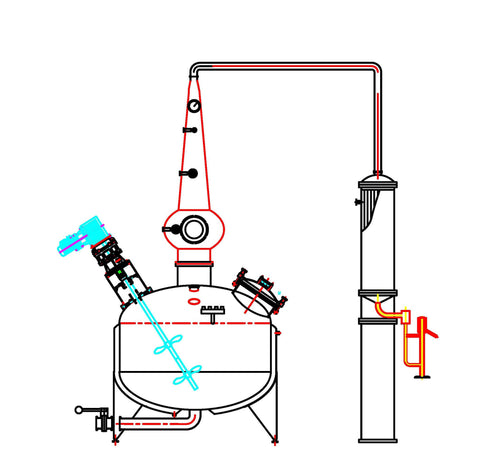

The drawing pictured is of our 600 gallon Jacketed, Steam Heated, Pro Series Pot Still. These 600 gallon Stills must be heated by Low Pressure Steam Boiler. This 600 gallon Still is 12' 9" tall. The width of the still including the condenser is 16' 7". This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. This 600 gallon Pot Still will produce up to 140 Proof with the Optional Bubble Plate.

This Still comes standard with:

600 Gallon Operating Capacity 304SS Stainless Steel Boiler
690 Gallon Actual Capacity
5hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator
16" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the drain
Copper Scotch Style Column
4" Sight Glass in the Column
2 CIP Spray Balls in the Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
12"x72" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
12' 9" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler Has a Mirror Polish

Regular Price: $47,602.88

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $2,707.36
Upgrade to an 18" Manway: $638.17
Gin Basket in the Globe of the Column with a 10" Tri Clamp Opening: $1,804.91
Extra Thermowell in the column for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $6,344.39
Gin Basket just before the Primary Condenser: $4,952.52
