500 Gallon Jacketed, Steam Heated, Pro Series Whiskey Still

$ 51,663.91

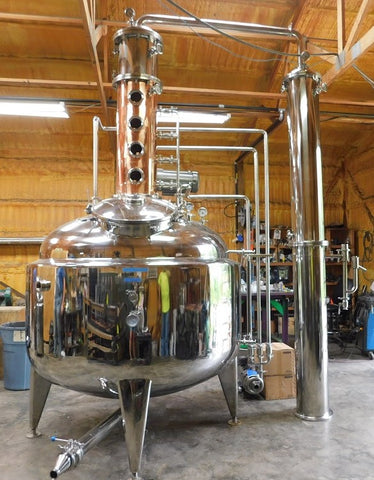

The picture is of one of our Jacketed, Steam Heated, Pro Series Whiskey Stills with Optional CIP Plumbing and Pump. The listed price is for the basic still without these options. This Still comes standard with our 14" 4 plate Bubble Plate Column. This column will produce up to 160 proof in one run. The Dephlegmator (Pre-Condenser) can be turned off and the plate drain valves of the Whiskey Column can be opened so that the still can be ran in Pot Still Mode. Any individual plate drain valve or any combination of plate drain valves can be ran closed or opened to obtain different proofs and flavor profiles. If you want you can do stripping runs in Pot Still Mode and then do Spirit Runs with the plates closed and the Drain Valves off. This 500 Gallon Whiskey Still must be heated by a Low Pressure Steam Boiler. This 500 gallon Still is 12' 9" tall but it can be scaled down to 11' 8" tall. The width of the Still including the condenser is 15' 7". This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. The 4 Plate Copper Whiskey Column will give you higher proofs and smoother spirits than the Pro Series Pot Still.

This 500 gallon Still comes standard with:

500 Gallon Operating Capacity 304SS Stainless Steel Boiler
575 Gallon Actual Capacity
5hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator
16" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the drain
14" Diameter Whiskey Column with 4 Bubble Plates
14" Diameter Tube & Shell Dephlegmator
(4) 4" Sight Glasses in the Column
4 CIP Spray Balls in the Column (1 above each plate)
4 Plate Drain Valves
4" Face Thermometer above the Dephlegmator in the Whiskey Column
4" Face Thermometer below the Dephlegmator in the Whiskey Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
12"x62" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
12' 7" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler Has a Mirror Polish

Regular Price: $51,663.91

Options:

Upgrade to an 18" Manway: $638.17
Upgrade to a 24" Manway: $1,017.20
Extra Thermowell in the column for a Temperature Probe: $83.80
Extra Thermowell above the Dephlegmator for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $7,016.10
Gin Basket just before the Primary Condenser: $4,419.18
