50 Gallon Jacketed, Steam Heated, Pro Series, Ultra Pro Whiskey Still

$ 21,698.22

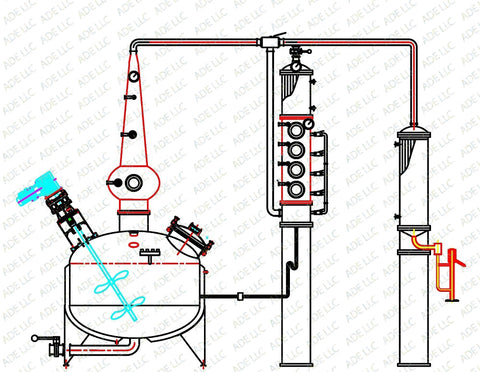

The drawing is of one of our 50 gallon Jacketed, Steam Heated, Pro Series, Ultra Pro Whiskey Stills. This 50 gallon Still comes with 2 Copper Columns. The Copper Scotch Column sits on the 50 gallon Still while the 6", 4 plate Bubble Plate Column is offset with it's own stand. The individual Plate Drain Valves in the 4 Plate Whiskey Column can be opened or closed, allowing for better control of flavor profiles and proof. The Dephlegmator at the top of the Whiskey Column is used to control proof. With the optional Bubble Plate in the Scotch Column this Still will produce up to 160 proof in 1 run. If you are doing a stripping run, or if you are doing a full flavored Brandy, there is a bypass valve that allows you to bypass the 4 Plate Whiskey Column so that you are only running alcohol through the Scotch Column. This 50 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style self contained jacketed, heating system (please see the options below). Click on the Low Pressure Steam Boiler link above to see our Low Pressure Steam Boilers. This 50 gallon Still is 9' 10" tall but it can be scaled down to 9' 4" tall. The width of the 50 gallon Still including the condenser is 14'. This 50 gallon Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket). This 50 gallon Ultra Pro Whiskey Still comes standard with:

50 Gallon Operating Capacity 304SS Stainless Steel Boiler
60 Gallon Actual Capacity
1hp 230vac 3 phase 0 rpm to 150 rpm Variable Speed Agitator:
12" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the drain
6"Copper Scotch Style Column on the Still
4" Sight Glass in The Sphere of the Copper Scotch Style Column
6" Diameter Offset, Whiskey Column with 4 Bubble Plates
6" Diameter Tube & Shell Dephlegmator on the 4 Plate Offset Column
(4) 4" Sight Glasses in the Whiskey Column
4 CIP Spray Balls in the Whiskey Column (1 above each plate)
4 Plate Drain Valves
Drain Return from the 4 Plate Whiskey Column to the Still Boiler
Check Valve in the Drain Return Line
4" Face Thermometer above the Dephlegmator in the Whiskey Column
4" Face Thermometer below the Dephlegmator in the Whiskey Column
1 CIP Spray Ball in the Boiler
4" Face 0°F to 250°F Thermometer in the Scotch Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
6"x36" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.
9'10" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler Has a Mirror Polish

Regular Price: $21,698.22

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column with Dephlegmator: $1,875.81

16,500 Watt , Self Contained, Bain Marie Style, Oil Bath Heating System With Controller $3,750.17

Extra Thermowells in The Columns for a Temperature Probe: $83.80

Extra Thermowells Above the Dephlegmator for a Temperature Probe: $83.80

CIP System with Plumbing and Pump: $5,835.92

Low Profile 9'4" Overall Height: $2,534.87

Gin Basket just before the Primary Condenser: $2,923.69

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com
