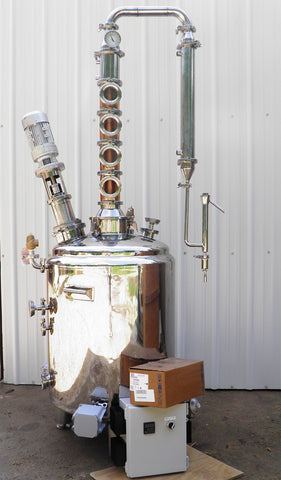

45 Gallon Jacketed Standard Series Still with a 4" Copper 4 plate Bubble Plate Column
45 Gallon Jacketed Standard Series Still with a
4" Copper 4 plate Bubble Plate Column
This 45 gallon still is great for Bourbon, Whiskey, Brandy, Grappa, Rum, Vodka and many others. It will distill between 120 and 170 proof with the 4 plate bubble plate column and up to 190 proof with the 4"x6' Vodka Column Extension added.
This Still has a beautiful 4" Diameter Copper Bubble Plate Column with four 4" diameter sight glasses, Gatling Gun (Tube & Shell) Dephlagmator on top of the Column and a 2" Gatling Gun (Tube & Shell) Condenser on the right side of the column. The column can be ran in Pot Still Mode to make Whiskey and Moonshine or it can be ran in reflux mode to make high proof light Whiskey or Rum. The optional Vodka Column Extension Can be added to make Vodka The boiler has three 2" Tri Clamp ports, with Tri Clamps and Cover Plates. The ports can be used to install an electric element with controller (please see the heating system option listed below).
The Best thing about this 45 gallon still is that it is jacketed. Cooking oil or water can be ran in the jacket. This gives you the ability to run grain in mashes and other mashes such as potato mashes, grappa mashes and fruit mashes with the solids left in, without the worry of scorching. This makes this still perfect for craft recipe research and development. If you are running a production sized still with a pot still head/column or a plated column, we can build you a still that will give you flavor profile and proof results that should closely match your larger still. We have options below for agitators and heating systems etc.
We also have these 45 gallon units in a combination Mash Tun Still Configuration. These combination units can be used to both cook the mash and to distill the mash. These units have the agitator center set on top and the column set towards the side. There is no extra cost for the combination Mash Tun Still configuration. The column actually produces a little better in this configuration.
45 Gallon Operating Capacity
53 Gallon Total Capacity
13 Gallon Jacket Operating Capacity
16 Gallon Total Capacity in the Jacket
2"Sanitary Butterfly Drain valve for Mash
Carrying handles.
3" Tri clamp Column Connection
5 psi Pressure Relief Valve on the jacket
5 psi Pressure Relief Valves on the inner boiler
4" Diameter Copper Bubble Plate Column
The column is completely modular with Sanitary Tri Clamp Connections throughout.
It is very simple easy and fast to disassemble the column for cleaning.
Plates can be added or removed from the column to run different proofs.
The column can be set up to run as a Pot Still Head in a matter of 5 to 10 minutes.
Top quality construction with beautifully rounded curves.
Built from heavy gauge 304 food grade stainless steel.
Commercial grade thermometer in the oil Jacket.
1"x1.5" triclamp port for a temperature probe in the oil.
Polished to a mirror finish inside and out.
Thermowell and commercial grade thermometer with a 3" face.
This item comes with a 1 year warranty which covers manufacturing defects and leaks.
Base Price for still boiler including drain valve hardware and safety devices $2,512.14.
Base price for still boiler including drain valve hardware and safety devices plus the 4 plate bubble plate column: $4,605.58.
Base price for still boiler including drain valve hardware and safety devices plus the 4" copper whiskey column (not shown): $3,345.45.
Options:
4"x4' Vodka column extension $937.32 with copper packing.
1/2hp electric agitator single speed 45 RPM 3 phase 230VAC $2,757.49
Variable speed WEG vfd drive for 1/2 hp agitator to be mounted on the wall. This VFD is Rated NEMA 4x for hazardous environments can be washed down. Price is $570.91. This VFD can be wired 3 phase or single phase input, to supply power to the 3 phase agitator
Copper Gin Basket $405.19
Stainless Gin Basket $270.13
Approx. 105 min heat up time with the 11,000 watt controller
11,000 watt heating system with digital programmable heating control and all UL listed parts. Control panel and element enclosures are NEMA4X. Price = $2,710.90
16,500 watt heating system with digital programmable heating control and all UL listed Parts. Control panel and element enclosures are NEMA4X. Price = $3,853.29
