300 Gallon Mash Tun Stripping Still

$ 25,830.75

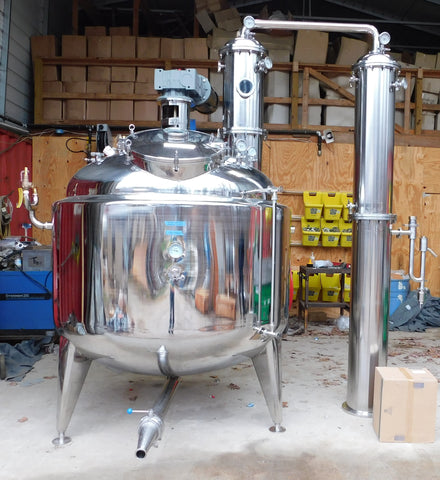

The main picture is of our Jacketed, Steam Heated, Pro Series Combination Mash Tun Stripping Still. Our 300 gallon Mash Tun Stripping Stills work best when heated by a Low Pressure Steam Boiler. Our 300 gallon Combination Mash Tun Stripping Still is 9'10" tall but it can be scaled down to 7' 11" tall. The width of this Stripping still, including the condenser is 13'6". This 300 gallon Still is great for cooking mash and stripping and with the optional bubble plate, it can be used for Brandy, Moonshine and Whiskey.

The drawing shown in the second picture is our newest design. This new design improves efficiency and decreases mash cooking time. Prices are the same for the new off center column design and the old centered column design. The new design has better agitation while maintaining the same characteristics as the old design for the stripping run.

The third still shown is our Pro Series Combination Mash Tun Stripping Stills

Our 300 gallon Combination Mash Tun Stripping Stills come Standard with:

300 Gallon Operating Capacity 304SS Stainless Steel Boiler
340 Gallon Actual Capacity
5hp 230vac 3 phase 0 rpm to 90 rpm Variable Speed Agitator With Long Heavy Blades for Mash Cooking
16" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri ,Clamp Butterfly Valve on the drain
12" Diameter Stripping Column
4" Sight Glass in the Column
1 CIP Spray Ball in the Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
12" x 44" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
9' 10" Overall Height
Mirror Polish Inside and Out

Regular Price: $25,830.75

Terms are:

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $2,520.43
Upgrade to an 18" Manway: $638.17
Upgrade to a 24" Manway: $1,017.20
Extra Thermowell in The Column for a Temperature Probe: $70.91
CIP System With Plumbing and Pump: $2,314.15
Low Profile 7 '11" Overall Height: $1,418.14
Gin Basket just before the Primary Condenser: $3,809.64
