300 Gallon Jacketed, Steam Heated, Ultra Pro Vodka Still

$ 64,782.00

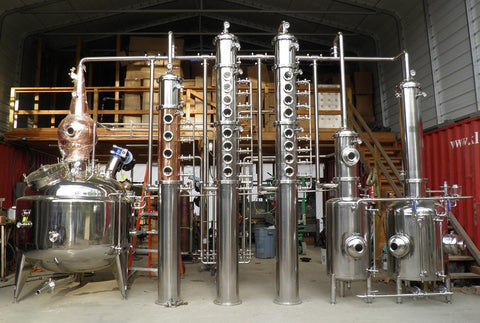

The picture is of our 300 gallon Jacketed, Steam Heated, Pro Series Ultra Pro Vodka Still with the CIP Plumbing and Pump and Heads/Hearts/Tails Receiving Tanks options, as well as Split Vodka Columns which allows the still to fit under a ceiling as low as 12 feet. The listed price is for the basic still without these options. This still will do everything that the Pro Series Vodka Still will do and more. It will produce great Whiskey, Brandy, Rum, Gin, Vodka and everything in between. This Still comes with one Copper Scotch Column on the Boiler, one Copper 4 Bubble Plate Whiskey Column and one Stainless 16 Bubble Plate Vodka Column. The individual Plate Drain Valves in the 4 Plate Copper Whiskey and the 16 Plate Vodka Column can be opened or closed allowing for better control of flavor profiles and proof. The Dephlegmators at the top of the Whiskey Column and Vodka Column are used to control proof. The 12" Diameter Stainless Steel Vodka Column has 16 bubble plates and a Dephlegmator in the top. With the Vodka Column on line this still will produce 190 proof Vodka in one run. For best results a stripping run should be done using only the Scotch Column, then the Vodka Run should be done with the low wines from the stripping run. The 4 plate Whiskey Column will produce up to 160 proof in one run. If you want to do a stripping run, you bypass the Whiskey Column and the Vodka Column with the two bypass valves or if you are doing a Vodka you you simply run the vapor through all three columns. This 300 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler. Click on the Low Pressure Steam Boiler link to the left to see our them. This 300 gallon Still is 18' 7" tall. The width of the Still including the condenser is 18' 4". This Still is great for producing: Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket) and Vodka.

This 300 gallon Ultra Pro Vodka Still comes Standard with:

300 Gallon Operating Capacity 304SS Stainless Steel Boiler
350 Gallon Actual Capacity
3hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator
16" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve on the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the Drain
Copper Scotch Style Column on the Still
12" Diameter Whiskey Column with 4 Bubble Plates
12" Diameter Tube & Shell Dephlegmator on the 4 Plate Offset Column
(4) 4" Sight Glasses in the Whiskey Column
4 CIP Spray Balls in the Whiskey Column (1 above each plate)
4 Plate Drain Valves
Check Valve in the Drain Return Line
12" Diameter Offset, Stainless Vodka Column with 16 Bubble Plates
12" Diameter Tube & Shell Dephlegmator on the 16 Plate Offset Vodka Column
(16) 4" Sight Glasses in the Stainless Vodka Column
16 CIP Spray Balls in the Vodka Column (1 above each plate)
16 Plate Drain Valves
Drain Return from the 16 Plate Vodka Column to the Still Boiler
2 CIP Spray Balls in the Boiler
4" Face Thermometer above the Dephlegmator in the Whiskey Column
4" Face Thermometer below the Dephlegmator in the Whiskey Column
4" Face Thermometer above the Dephlegmator in the Vodka Column
4" Face Thermometer below the Dephlegmator in the Vodka Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
12"x50" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.
18'7" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler has a Mirror Polish

Regular Price: $64,782.00

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment due plus shipping when equipment is ready to ship.

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $2,133.65
Upgrade to an 18" Manway: $638.17
Extra Thermowell in The Columns for a Temperature Probes: $83.80
Extra Thermowell above the Dephlegmators for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $8,781.47
Gin Basket just before the Primary Condenser: $4,419.18
