200 Gallon Jacketed, Steam Heated, Pro Series Whiskey Still

$ 26,898.13

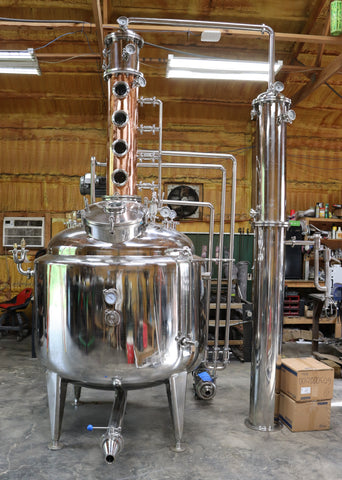

The still in the first picture is one of our 200 gallon Jacketed, Steam Heated, Pro Series Whiskey Stills with option CIP Plumbing and Pump. The listed price does not include the CIP Plumbing and Pump. This Still comes standard with our 10" 4 plate Bubble Plate Column . This column will produce up to 160 proof in one run. The Dephlegmator (Pre-Condenser) can be turned off and the Drain Valves of the Whiskey Column can be opened so that the still can be ran in Pot Still Mode. Any individual Plate Drain Valves or any combination of the Plate Drain Valves can be ran closed or open to obtain different proofs and flavor profiles. If you want you can do stripping runs in Pot Still Mode and then do Spirit Runs with the plates closed and the Drain Valves off. This 200 Gallon Whiskey Still must be heated by a Low Pressure Steam Boiler. This 200 gallon Still is 11' 4" tall. The width of the Still including the condenser is 12'. This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. The 4 Plate Copper Whiskey Column will give you higher proof and smoother spirits than the Pro Series Pot Still. This still can also be purchased with an electric Baine Marie Heating system, like the still in the second picture. The still in the second picture also has the optional gin basket. Please see the pricing for these options below.

This 200 gallon Still comes standard with:

200 Gallon Operating Capacity 304SS Stainless Steel Boiler
230 Gallon Actual Capacity
2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:
12" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the drain
10" Diameter Whiskey Column with 4 Bubble Plates
10" Diameter Tube & Shell Dephlegmator
(4) 4" Sight Glasses in the Column
4 CIP Spray Balls in the Column (1 above each plate)
4 Plate Drain Valves
4" Face Thermometer above the Dephlegmator in the Whiskey Column
4" Face Thermometer below the Dephlegmator in the Whiskey Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
10"x40" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
11'4" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler has a Mirror Polish
Regular Price: $26,898.13

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment due plus shipping due when equipment is ready to ship.

Options:

Upgrade to an 16" Manway: $509.25
Bain Marie Style 44,000 Watt Electric Oil Bath Heating System With Controller $9,386.25
Extra Thermowell in the Columns for a Temperature Probe: $83.80
Extra Thermowell above the Dephlegmator for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $5,354.58
Gin Basket just before the Primary Condenser: $3,809.64
