200 Gallon Jacketed, Steam Heated, Pro Series Pot Still

$ 24,882.88

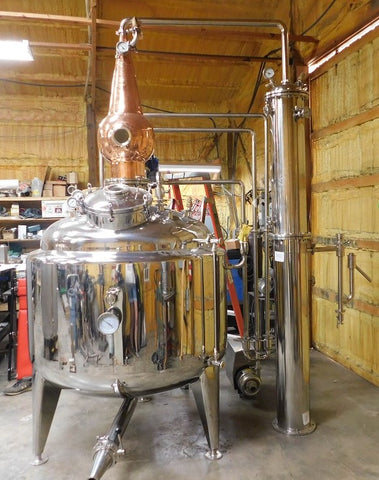

The picture is of our 200 gallon Jacketed, Steam Heated, Pro Series Pot Still with Optional CIP Plumbing and Pump. The listed price is for the basic still without this option. These 200 gallon Stills must be heated by Low Pressure Steam Boilers. This 200 gallon Still is 11' 4" tall but it can be scaled down to 9' 10" Tall. The width of the still including the condenser is 12'. This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. This 200 gallon Pot Still will produce up to 140 Proof with the Optional Bubble Plate.

This Still comes standard with:

200 Gallon Operating Capacity 304SS Stainless Steel Boiler
230 Gallon Actual Capacity
2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator
12" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve on the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the drain
Copper Scotch Style Column
4" Sight Glass in the Column
2 CIP Spray Balls in the Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
10"x40" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
11'4" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler has a Mirror Polish
Regular Price: $24,882.88

1/3 Payment due when equipment is ordered.
1/3 Payment due when equipment is completed.
1/3 Payment due plus shipping when the equipment is ready to ship.

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $2,133.65
Upgrade to an 16" Manway: $509.25
Bain Marie Style 44,000 Watt Electric Oil Bath Heating System With Controller $9,386.25
Extra Thermowell in the column for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $4,867.80
Gin Basket just before the Primary Condenser: $3,809.64
