200 Gallon Jacketed, Steam Heated, Pro Series Vodka Still

$ 42,139.24

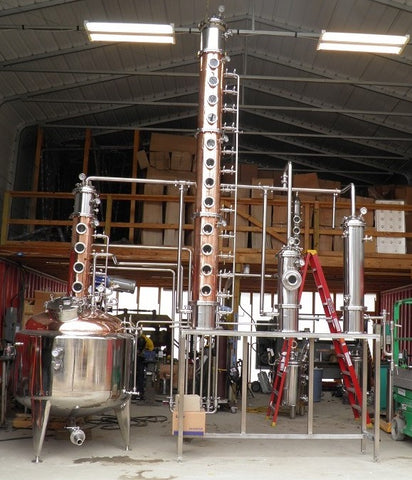

The picture is of our 200 gallon Jacketed, Steam Heated, Pro Series Vodka Still with the optional CIP Plumbing and Pump, Copper Top on the Boiler, and Copper Vodka Column. The listed price is for the basic still without these options. This still will produce great Whiskey, Vodka and everything in between. This Still comes with one Copper Column and one Stainless Column. The individual Plate Drain Valves in the 4 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof. The Dephlegmator at the top of the Whiskey Column is used to Control Proof. The 10" Diameter Stainless Steel Vodka Column has 12 bubble plates and a Dephlegmator in the top. This Still will produce 190 proof Vodka in two Runs. The 4 plate Whiskey Column will produce up to 160 proof in one run. If you want to do a stripping run, you simply open the Plate Drain valves and the plates in the Copper Whiskey Column and you bypass the Vodka Column or if you are doing a Vodka you open the bypass for the Vodka Column and you run the Vapor through both Columns. This 200 Gallon Still must be heated by a Low Pressure Steam Boiler. This 200 gallon Still is 14' 7" tall. The width of the Still including the condenser is 15' 4". This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket) and Vodka.

This 200 gallon Pro Series Vodka Still comes standard with:

200 Gallon Operating Capacity 304SS Stainless Steel Boiler
230 Gallon Actual Capacity
2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:
12" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
4" Tri Clamp Butterfly Valve on the Drain
10" Diameter Whiskey Column with 4 Bubble Plates
10" Diameter Tube & Shell Dephlegmator on the 4 Plate Whiskey Column
(4) 4" Sight Glasses in the Whiskey Column
4 CIP Spray Balls in the Whiskey Column (1 above each plate)
4 Plate Drain Valves
Check Valve in the Drain Return Line
10" Diameter Offset, Stainless Vodka Column with 12 Bubble Plates
10" Diameter Tube & Shell Dephlegmator on the 12 Plate Offset Vodka Column
(12) 4" Sight Glasses in the Stainless Vodka Column
12 CIP Spray Balls in the Vodka Column (1 above each plate)
12 Plate Drain Valves
Drain Return from the 12 Plate Vodka Column to the Still Boiler
2 CIP Spray Balls in the Boiler
4" Face Thermometer above the Dephlegmator in the Whiskey Column
4" Face Thermometer below the Dephlegmator in the Whiskey Column
4" Face Thermometer above the Dephlegmator in the Vodka Column
4" Face Thermometer below the Dephlegmator in the Vodka Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
10"x40" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.
14'7" Overall Height
Mirror Polish on Copper and Stainless
Inner Boiler Has a Mirror Polish
Regular Price: $42,139.24

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Upgrade to an 16" Manway: $509.25
Bain Marie Style 44,000 Watt Electric Oil Bath Heating System With Controller $9,386.25
Extra Thermowell in the columns for a Temperature Probes: $83.80
Extra Thermowell above the Dephlegmators for a Temperature Probe: $83.80
CIP System with Plumbing and Pump: $7,526.97
Gin Basket just before the Primary Condenser: $3,809.64
