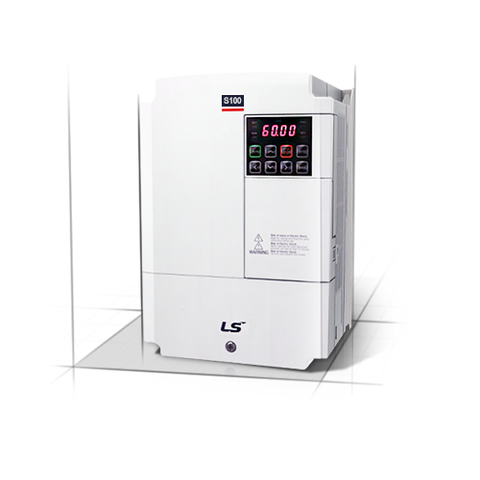

LS Electric LSLV0110S100-4 480Vac 3 Phase VFD 15hp 11kw
|
Strong Performance |
|
|
Powerful sensorless control Starting torque of 200%/0.5Hz is produced and provides robust power in the low speed region. Powerful sensorless control Standstill auto-tuning is equipped to find motor constant without rotation under conditions where the system is installed or motor cannot rotate.> 100~240V in one coil(up to 220kW,400A) Powerful sensorless control Inverter capable fo quick reliable smooth restarts into bi-directional rotating loads. |
Space efficient Design
Side by Side installation
|
Minimized distance between products enables control panel size reduction when installing multiple AC Drive.
|
|
|
|
|
|
Smaller Size Main parts are optimally arranged inside through the use of thermal radiation analysis and 3-dimensional design to reduce the dimensions by up to 60%(volume based) compared to the previous product(iG5A) |
|
Standard Compliance
|
|
Built-in DC reactor - Effective in improving power factor and decreasing THD. ※ 3-phase 400V 30~75kW Built-in EMC filter - Meets the electrical noise reduction regulation. Related standards : 2nd Environment / Category C3 (Class A) CE standard is certified ※ C2 : 1-phase 200V 0.4~2.2kW ※ C3 : 3-phase 400V 0.4~75kW Global compliance (UL, CE) - Global standard compliance ※ UL, CE, Gost, C-tick and cUL Dual rating operation - It is designed to choose between heavy and normal duty operation. Overload capacity ※ Heavy duty operation : 150% of rated current, 60 seconds ※ Normal duty operation : 120% of rated current, 60 seconds Various field networks - Able to deal with a variety of field networks Easy maintenance and mounting. Various field bus options - Profibus, Ethernet IP, Modbus TCP, CANopen Easy to install and use |
|
Safety Function
|
Built-in Safety Torque Off(STO) The Safety input function meets EN ISO 13849-1 PLd and EN 61508 SIL2 (En 60204-1, stop category 0). This feature is equipped and enables you to meet current safety standards.
|
|
|
Suitable for Users
|
Simple cooling fan replacement |
Smart copier |
|
|
|
||
| Replaceable fan without complete disassembly. | 1. Smart copier allows users to download & upload the parameters from/to S100 without AC input power. 2. Customized main firmware is able to be downloaded to S100 using Smart copier. 3. Firmware of main control and I/O saved in Smart copier can be downloaded to S100 |
|
|
Multi-keypad function |
Conduit option |
|
| - Single LCD keypad can be used to set up the parameters of a RS485 connected drives. - LCD keypad (same as iS7 model) is used to easily set up the parameters. Parameters can be copied to other drives. - Multi language support will be available. |
- S100 meets UL type 1 with this option. | |
|
Flange option |
||
| S100 allows its heatsink to be installed outside of panel for better cooling system with this option. |
