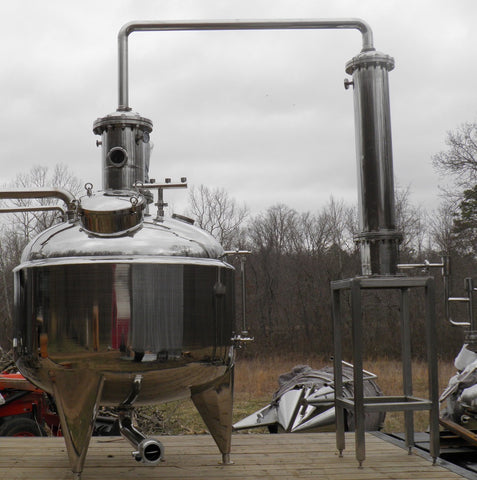

50 Gallon Stripping Still

These 50 gallon Stills can be heated by Low Pressure Steam Boiler or by our optional Electric Self Contained oil bath Heating System. Our 50 gallon Stripping Still is 9'8" tall but it can be scaled down to 9' 8" tall. The width of this Stripping still, including the condenser is 12.5'. This 50 gallon Still is great for stripping and it comes with the optional bubble plate, it can be used for Brandy, Moonshine and Whiskey. This Still comes Standard with:

50 Gallon Operating Capacity 304SS Stainless Steel Boiler
60 Gallon Actual Capacity
1hp 230vac Single or 3 phase 0 rpm to 150 rpm Variable Speed Agitator
12" Clamp Down Manway
4" Sight Glass in the Manway
5 PSI Pressure Relief Valve on the Inner Boiler
5 PSI Vacuum Relief Valve on the Inner Boiler
15 PSI ASME Pressure Relief Valve On the Jacket
15 PSI Steam Jacket
Insulation Jacket
3" Tri Clamp Butterfly Valve on the drain
6" Diameter Stripping Column
4" Sight Glass in the Column
1 CIP Spray Ball in the Column
2 CIP Spray Balls in the Boiler
4" Face 0°F to 250°F Thermometer in the Column
3" Face 0°F to 250°F Thermometer on the inner Boiler
4"x40" Tube and Shell Condenser
Stainless Parrot's Beak
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
7' 10" Overall Height
Mirror Polish Inside and Out
Base Price: $12,176.31

Terms are:
1/3 Payment when ordering.
1/3 Payment when equipment is completed.
1/3 Payment plus shipping when equipment is ready to ship.

Options:
Bubble Plate with Drain Valve behind the Sight Glass in the Column: $973.37
16,500 Watt , Self Contained, Bain Marie Style, Oil Bath Heating System with Controller $3,750.17
Upgrade to an 16" Manway: $509.25
Extra Thermowell in the column for a Temperature Probe: $70.91
CIP System with Plumbing and Pump: $1,368.73
Gin Basket just before the Primary Condenser: $2,520.43
