200 Gallon Pro Series Stripping Still

200 Gallon Pro Series Stripping Still

  • $ 24,359.41

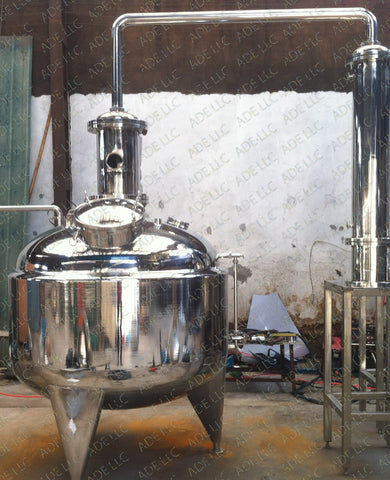

This is one of our Jacketed, Steam Heated, Pro Series Stripping Still. Our 200 gallon Stripping Stills are normally heated by Low Pressure Steam Boiler. Our 200 gallon Stripping Still is 9'10" tall but it can be scaled down to 7' 10" tall.  The width of this Stripping still, including the condenser is 13.5'. This 200 gallon Still is great for stripping and it with the optional bubble plate, it can be used for Brandy, Moonshine and Whiskey. This Still comes Standard with:



  • 200 Gallon Operating Capacity 304SS Stainless Steel Boiler
  • 230 Gallon Actual Capacity
  • 3hp 230vac 3 phase 0 rpm to 150 rpm Variable Speed Agitator
  • 16" Clamp Down Manway
  • 4" Sight Glass in the Manway
  • 5 PSI Pressure Relief Valve on the Inner Boiler
  • 5 PSI Vacuum Relief Valve on the Inner Boiler
  • 15 PSI ASME Pressure Relief Valve On the Jacket
  • 15 PSI Steam Jacket
  • Insulation Jacket
  • 4" Tri Clamp Butterfly Valve on the drain
  • 10" Diameter Stripping Column
  • 4" Sight Glass in the Column
  • 1 CIP Spray Ball in the Column
  • 2 CIP Spray Balls in the Boiler
  • 4" Face 0°F to 250°F Thermometer in the Column
  • 3" Face 0°F to 250°F Thermometer on the inner Boiler
  • 8"x48" Tube and Shell Condenser
  • Stainless Parrot's Beak
  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick. (We provide a table stand by default)
  • 10' 6" Overall Height
  • Mirror Polish Inside and Out

        Base Price: $24,359.41

Terms are:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Bain Marie Style 44,000 Watt Electric Oil Bath Heating System with Controller: $9,336.25

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $1,101.28

Upgrade to an 18" Manway: $638.17

Upgrade to a 24" Manway: $1,017.20

Extra Thermowell in the column for a Temperature Probe: $70.91

CIP System with Plumbing and Pump: $2,314.15

Gin Basket just before the Primary Condenser: $3,809.64

To order additional options, please call 417-778-6100.
