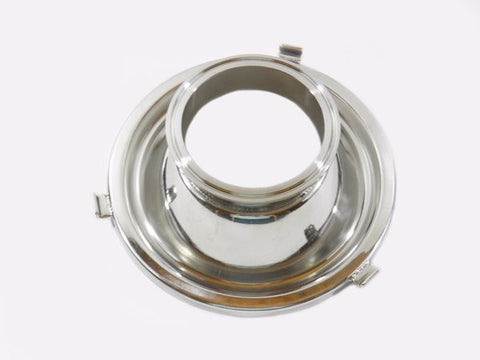

Moonshine Still Domed Boiler Lid with 4" Tri Clamp Connection for Column

  • $ 36.05


This beautifully polished domed lid will fit onto our 5, 8, 13 and 26 gallon moonshine still boilers. The lid comes pre fabricated with a 4" tri clamp connection, allowing the user to attach any 4" column to their boiler. This boiler lid comes with the lid gasket. Made from stainless steel 304, these lids meet all of today's standards for sanitary fittings

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .





Pipe Outer Diameter
A

Flange Outer Diameter
B

Pipe Inner Diameter
C

Tri Clamp Dimension Diagram

1"

1.98"

.87"

1.5"

1.98"

1.37"

2"

2.52"

1.87"

2.5"

3.05"

2.37"

3"

3.58"

2.87"

4"

4.68"

3.83"

6"

6.57"

5.78"

8"

8.57"

7.78"

10"

10.57"

9.69"

12"

12.57"

11.81"

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
SDavey

Fits perfect! Shipped fast! Will buy more from this seller when needed!

S
Stewart p.
Milk can domed boiler lid 👍

Still domed boiler lid looked and fit great . Very happy with it and the tri clamp and seal as well . Thanks 😊

G
Gary M.
Slainte Mhath

I’ve bought several things from Affordable Distillery including my 8 gallon reflux still 2 yrs ago and different parts recently...... ALWAYS excellent and prompt service and the nicest people to deal with 👍

d
dmz
Great product and service

Fits my boiler perfectly. I had an issue with my order, and it was immediately and professionally dealt with. I couldn't ask for anything better.
