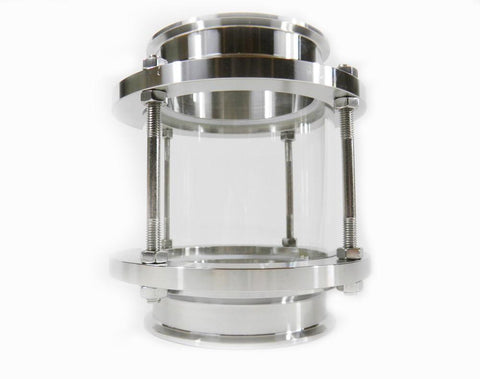

6" Tri Clamp Sight Glass with Temp Resist Borosilicate Glass

$ 218.72

6" Tri Clamp Sight Glass with Silicone Seals and Stainless Steel SS304 Borosilicate Glass.

Borosilicate glass is known for having very low coefficients of thermal expansion (~3 × 10−6 /°C at 20 °C), making them resistant to thermal shock, more so than any other common glass. This means that they handle heating, cooling and temperature changes much better than other types of glass.

It is rated for a Maximum Pressure of 40 PSI.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .

Pipe Outer Diameter A	Flange Outer Diameter B	Pipe Inner Diameter C
1"	1.98"	.87"
1.5"	1.98"	1.37"
2"	2.52"	1.87"
2.5"	3.05"	2.37"
3"	3.58"	2.87"
4"	4.68"	3.83"
6"	6.57"	5.78"
8"	8.57"	7.78"
10"	10.57"	9.69"
12"	12.57"	11.81"
