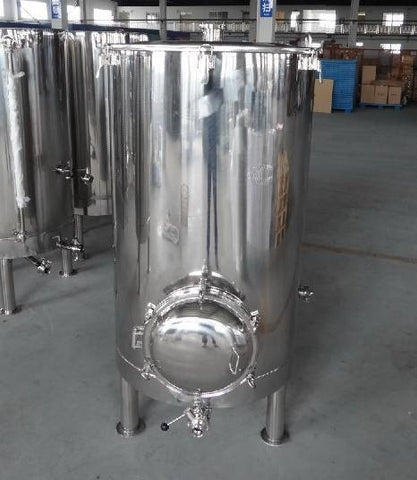

150 Gallon Stainless Mash Tun

• 304 stainless steel construction.
• 61" tall without the lid
• 1-1/2" Drain Valve
• False Bottom (Pictured)
• Sparging Arm
• 13.8" Manway for cleaning out the spent grain above the false bottom.
• Clamp Down Lid with a port for a CIP Spray Ball
• Tri Clamp fittings
• Price: $8,463.00

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment due plus shipping when equipment is ready to ship.

Additional Options Include:

• Sparge Arm with Sparge Ball, includes gaskets and 1.5" Tri Clamps for attaching to the Mash Tun $100.00.
• CIP Spray Ball. This Spray Ball fits the 3" CIP port on the lid of the Mash Tun. $39.00

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .
