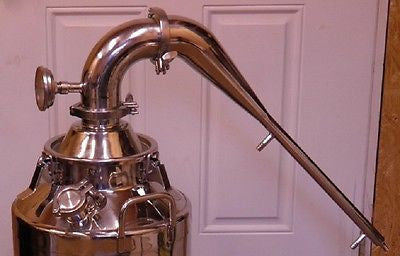

3" Stainless Pot Still Column With Built in Condenser, Whiskey, Moonshine Head

$ 215.46

This 3" Stainless Steel Pot Still Head comes with a Liebig condenser and a commercial grade thermometer with a 3" face.

Solid TIG welded construction which is much stronger than soldering or brazing. Includes structured copper packing for the column. This column gives you the best of both worlds. You get the strength and durability of stainless and the flavor improving qualities of copper.

This is for the head/column only, the boiler is not included.

Comes With:

Commercial grade thermometer with a 3" face
1.5" Tri Clamp and 1.5" Silicone Gasket for connecting the column to a still
3" Tri Clamp stainless ferrule connection welded to the base of the column for connecting to a still
3" Tri Clamp with 3" Silicone Gasket for connecting the column to the still.
3" Tri Clamp with 3" Silicone Gasket for connecting the column to the condenser
Built in stainless Liebig condenser.
1/2" hose barb connections on the condenser for cooling water.
Super heavy duty construction using 308 stainless welding rod and heavy gauge 304 stainless steel.
1 Roll of structured Copper Packing

This item comes with a 1 year warranty which covers manufacturing defects and leaks.

This Pot Still Column is built to last a lifetime.

Pass it down to future generations.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .

Pipe Outer Diameter A	Flange Outer Diameter B	Pipe Inner Diameter C
1"	1.98"	.87"
1.5"	1.98"	1.37"
2"	2.52"	1.87"
2.5"	3.05"	2.37"
3"	3.58"	2.87"
4"	4.68"	3.83"
6"	6.57"	5.78"
8"	8.57"	7.78"
10"	10.57"	9.69"
12"	12.57"	11.81"

Disclaimer:

These products may not be legal to operate in some areas. Affordable Distillery Equipment, LLC strongly discourages any unlawful use of these products and is not responsible for any damage or injury caused by the misuse or unlawful use of these products. Any person or entity that uses information or equipment provided by Affordable Distillery Equipment, LLC does so entirely at their own risk and accepts all liability concerning the use of the aforementioned equipment and information.

Good deal For sure.

I ran it on my 20 Gal. stainless boiler that has a 4" tri- clamp opening. I had to use a 6" tall sanitary pipe tri- clamp reducer taking it to 3" tri-clamp for the colom. I ran it with just purified water to check for leaks and to see how it was going to run before putting mash in. I found that the built in condenser was not able to convert all the steam to liquid. I understand that my temp of vapor was running a good bit hotter than my mash. And i believe that my reducer is the problem. I think its accelerating my vapor. I might put a 4" cap with a 3" hole in the end of my reducer to slow it down. I tried a few adjustments but had limited luck getting all the vapor to liquid. So i have my worm ready to use just in case this happens during my first run. Other than that nice quality and a great price. I will continue to shop with them in the future
