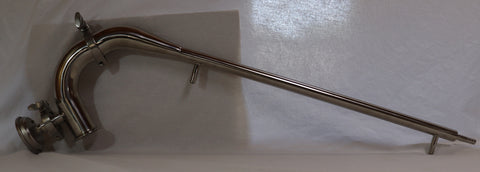

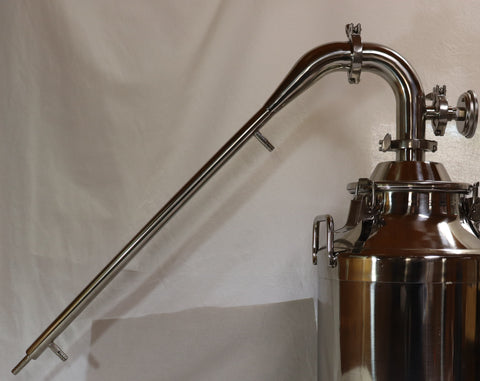

2" Stainless Pot Still Column With Built in Condenser, Moonshine Still Head
- Commercial grade thermometer with a 3" face
- 2" Tri Clamp stainless ferrule connection welded to the base of the column for connecting to a still
- 2" Tri Clamp with 2" Silicone Gasket for connecting the column to a still.
- 2" Tri Clamp with 2" Silicone Gasket for connecting the column to the condenser
- Built in stainless Liebig condenser.
- 1/2" hose barb connections on the condenser for cooling water.
- Super heavy duty construction using 308 stainless welding rod and heavy gauge 304 stainless steel.
- 1 Roll of structured Copper Packing
DETERMINING TRI CLAMP SIZE
Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.
If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .
|
|
Pipe Outer Diameter |
Flange Outer Diameter |
Pipe Inner Diameter |
|
|
1" |
1.98" |
.87" |
|
1.5" |
1.98" |
1.37" |
|
|
2" |
2.52" |
1.87" |
|
|
2.5" |
3.05" |
2.37" |
|
|
3" |
3.58" |
2.87" |
|
|
4" |
4.68" |
3.83" |
|
|
6" |
6.57" |
5.78" |
|
|
8" |
8.57" |
7.78" |
|
|
10" |
10.57" |
9.69" |
|
|
12" |
12.57" |
11.81" |
