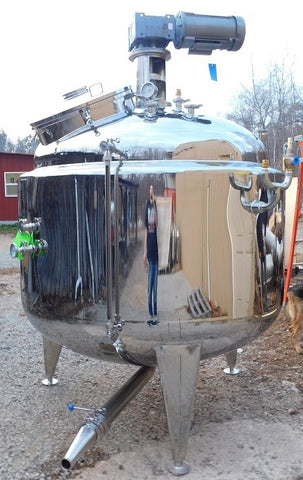

300 Gallon Pro Series Stainless Mash Tun

Our Pro Series Mash Tuns come standard with both heating and cooling and are built to last a lifetime. Ask about our 2 different heating/cooling options. The wall thickness of the stainless steel for the inner tank and jacket of our Mash Tuns are twice that of some of our competitors. Our Mash Tuns have larger Motors and Gear Boxes that can handle even the thickest mashes. These Mash Tuns work especially well for corn mashes. We have a tall model like the main picture and a short squat model like the additional picture.
Features:

• Steam Jacket
• 300 gallon Operating Capacity
• 345 gallon Total Capacity
• 16" Manway on top
• Thermowell and Thermometer
• Variable Speed 3hp Agitator
• Adjustable Legs
• CIP (Clean In Place) Spray Ball
• Insulation
• 304 Food Grade Stainless Steel
• 4" Drain Valve
• Pressure Relief Valves on the Tank and Steam Jacket
• Vacuum Relief Valves on the Tank and Steam Jacket
• Internal cooling coil
• Price: $18,364.29

1/3 Payment due when ordering equipment.
1/3 Payment due when equipment is completed.
1/3 Payment due plus shipping when equipment is ready to ship.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .



	Pipe Outer Diameter A	Flange Outer Diameter B	Pipe Inner Diameter C
	1"	1.98"	.87"
	1.5"	1.98"	1.37"
	2"	2.52"	1.87"
	2.5"	3.05"	2.37"
	3"	3.58"	2.87"
	4"	4.68"	3.83"
	6"	6.57"	5.78"
	8"	8.57"	7.78"
	10"	10.57"	9.69"
	12"	12.57"	11.81"
